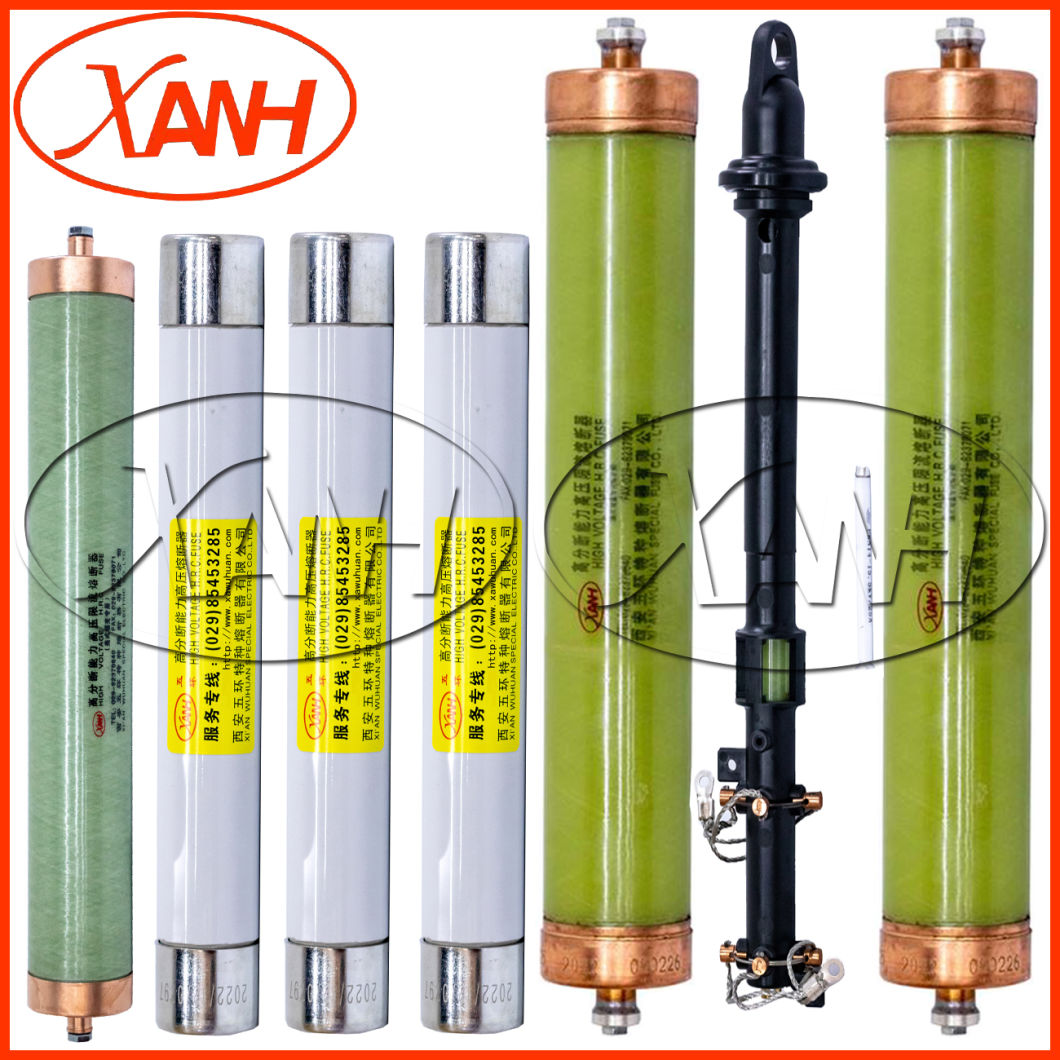

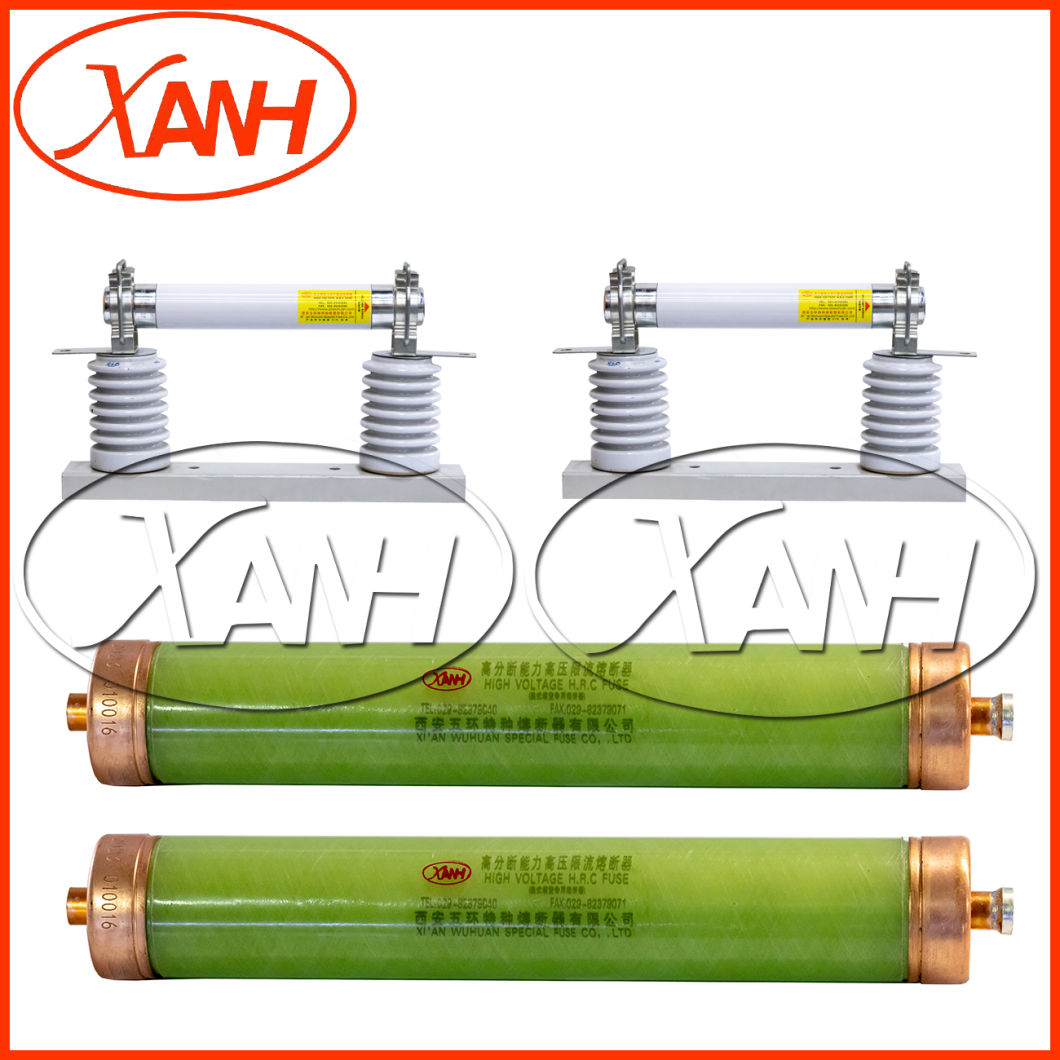

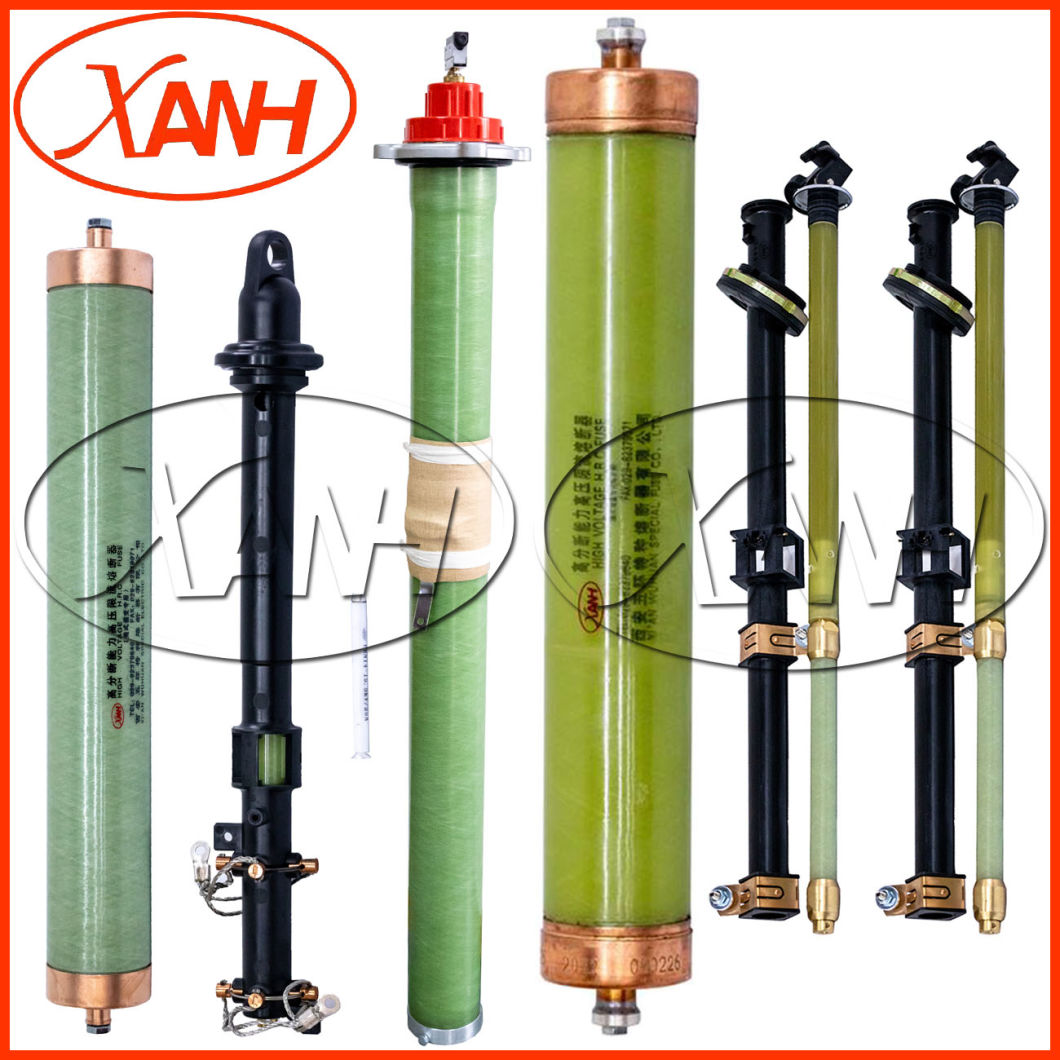

ELSP Current-Limiting Backup Fuse is used in series with low current primary protection devices such as a Bay-O-Net fuse or MagneX Interrupter. The ELSP fuse is designed for use in transformer oil, Envirotemp™ FR3™ fluid, or an approved equivalent. The fuse's highly efficient current-limiting section minimizes the effects of high fault current stresses on equipment and the distribution system. Its minimum interrupting rating is coordinated with that of a low current interrupter to avoid undesirable low current operation; yet its maximum interrupting rating will clear the highest fault currents likely to occur. Higher continuous current ratings can be achieved by connecting two fuses in parallel.
8.3kv
CBUC08030C100, CBUC08030C100M, CBUC08040C100, CBUC08040C100M, CBUC08050C100, CBUC08050C100M, CBUC08065C100, CBUC08065C100M, CBUC08080C100, CBUC08080C100M, CBUC08100C100, CBUC08100C100M, CBUC08125C100, CBUC08125C100M, CBUC08150D100, CBUC08150D100M, CBUC08165D100, CBUC08180D100, CBUC08180D100M, CBUC08250D100, CBUC08250D100M, CBUC09030C100, CBUC09030C100M, CBUC09040C100, CBUC09040C100M, CBUC09050C100, CBUC09050C100M, CBUC09065C100, CBUC09065C100M,
15kv,
CBUC15030C100, CBUC15030C100M, CBUC15040C100, CBUC15040C100M, 3CBUC15050C100, CBUC15050C100M, CBUC15065C100, CBUC15065C100M, CBUC15080C100, CBUC15080C100M, CBUC15100C100, CBUC15100C100M, CBUC15125C100, CBUC15125C100M, CBUC15150D100, CBUC15150D100M, CBUC15165C10, CBUC15165D100, CBUC15180D100, CBUC15180D100M,
17.5kv
CBUC17030C100, CBUC17030C100M, CBUC17040C100, CBUC17040C100M, CBUC17050C100, CBUC17050C100M, CBUC17065C100, CBUC17065C100M,
23kv
CBUC23030C100, CBUC23030C100M, CBUC23040C100, CBUC23040C100M, CBUC23050C100, CBUC23050C100M, CBUC23065C100, CBUC23065C100M, CBUC23080C100, CBUC23080C100M, CBUC23100C100, CBUC23100C100M, CBUC23125D100, CBUC23150D100, CBUC23165D100,
38kv
CBUC38050D100, CBUC38065D100, CBUC38080D100, CBUC38100D100, CBUC38120D100, CBUC38140D100 |
| Fusing For Three-Phase Single Voltage Transformers |
High Voltage
Rating | Transformer
kVA | Assumed Impedance % | 38 kV Bay-O-Net Fuse
(Cooper Power series) | 38 kV Back Up
Current-Limiting Fuse
(Cooper Power series ELSP) |
| 34,500Δ | 150 | 2 | 4000380C06CB | CBUC38050D100 |
| 225 | 3 | 4000380C06CB | CBUC38050D100 |
| 300 | 3.50 | 4000380C06CB | CBUC38050D100 |
| 500 | 4.00 | 4000380C08CB | CBUC38050D100 |
| 750 | 5.75 | 4000380C10CB | CBUC38065D100 |
| 1000 | 5.75 | 4000380C10CB | CBUC38065D100 |
| 1100 | 5.75 | 4000380C11CB | CBUC38080D100 |
| 1250 | 5.75 | 4000380C11CB | CBUC38080D100 |
| 1500 | 5.75 | 4000380C12CB | CBUC38100D100 |
| 1750 | 5.75 | 4000380C12CB | CBUC38100D100 |
| 1850 | 5.75 | 4000380C12CB | CBUC38100D100 |
| 2000 | 5.75 | 4000380C12CB | CBUC38100D100 |
| 2250 | 5.75 | 4000380C14CB | CBUC38140D100 |
| 2500 | 5.75 | 4000380C14CB | CBUC38140D100 |
| 2850 | 5.75 | 4000380C14CB | CBUC38140D100 |
| 3000 | 5.75 | 4000380C14CB | CBUC38140D100 |
| 3200 | 5.75 | 4000380C14CB | CBUC38140D100 |
With the broadest array of transformer components for ANSI/IEEE design type equipment, we supply transformer and switchgear OEM's with the reliable products needed to service their component requirements. Tap changer, series multiple, loadbreak and sectionalizing switches, as well as apparatus bushings are examples of the numerous products available from the industry's largest supplier of transformer components.
Components & Protective Equipment:
Fault Indicators
Fusing Equipment
Expulsion Links
Bay-O-Net
NX Current Limiting
X-limiter Current Limiting
NX Companion Back-up C
ELF Current-Limiting
Tandem ELF
L Bay-O-Net
ELSP Fuse
Encapsulated Fuse
Magnex Interrupter
Transformer Components
Secondary Bushings
Bushing Wells
Integral Loadbreak Bushing
600A Bushings
Arrester Disconnect
Tap Changer
Sectionalizing Switch
Two positions/Four positions/Three positions Loadbreak Switch
Series - Multiple Switch
COMPANY PROFILE: Xi 'an Wuhuan Special Fuse Co., Ltd. is a high-technology manufacturer company established by Wuhuan Electric Group in Xi 'an, Shaanxi Province, China's high voltage electric production base in 2000. It Mainly engaged in the development, design, manufacture, sales and service of fuses and other high voltage appliances. The main products of the company are high-voltage current limiting fuses, which are used in indoor 50HZ/60HZ power systems with rated voltage of 3.6-40.5KV. As American power transformer, Europe type power transformer, high voltage motor, voltage transformer, power capacitors and other electric equipment overload and short circuit protection, and in other appliances such as: load switch, vacuum contactor etc, protection circuit and complete sets of electrical equipment from damage by excessive overload current and short circuit current. The company has high-quality technical personnel, professional fuse manufacturing and testing equipment and advanced modern enterprise management concept, its product categories, production scale and sales revenue are growing at a high speed. Wuhuan Company implements ISO9001:2000 quality system standard, uses MCAD development and design, with the help of Intuitive ERP and advanced testing equipment to ensure the reliability of production and high quality products. All the products have passed the type test of the national high voltage electrical apparatus quality supervison and inspection center ,and are in line with the national GB/T15166.2 standard and IEC60282 standard of the International Electrotechnical Commission.
New products:
SDLDJ and SFLDJ & SDMDJ full-range protection high-voltage current limiting fuses developed by our company are mainly used for overload and short-circuit protection of domestic power generation transformers. This series of products complete specifications, rated current up to 100A, products have passed the national high voltage electrical quality supervision and inspection center type test.
Quality standards of the company:
We fully implement GB/T15166.2 and IEC60282(International Electrotechnical Commission) technical standards, product quality in line with the British BS standard, German DIN standard. Rigorous design, advanced technology, timely service, the company's quality system for the implementation of the quality policy to provide a full guarantee.

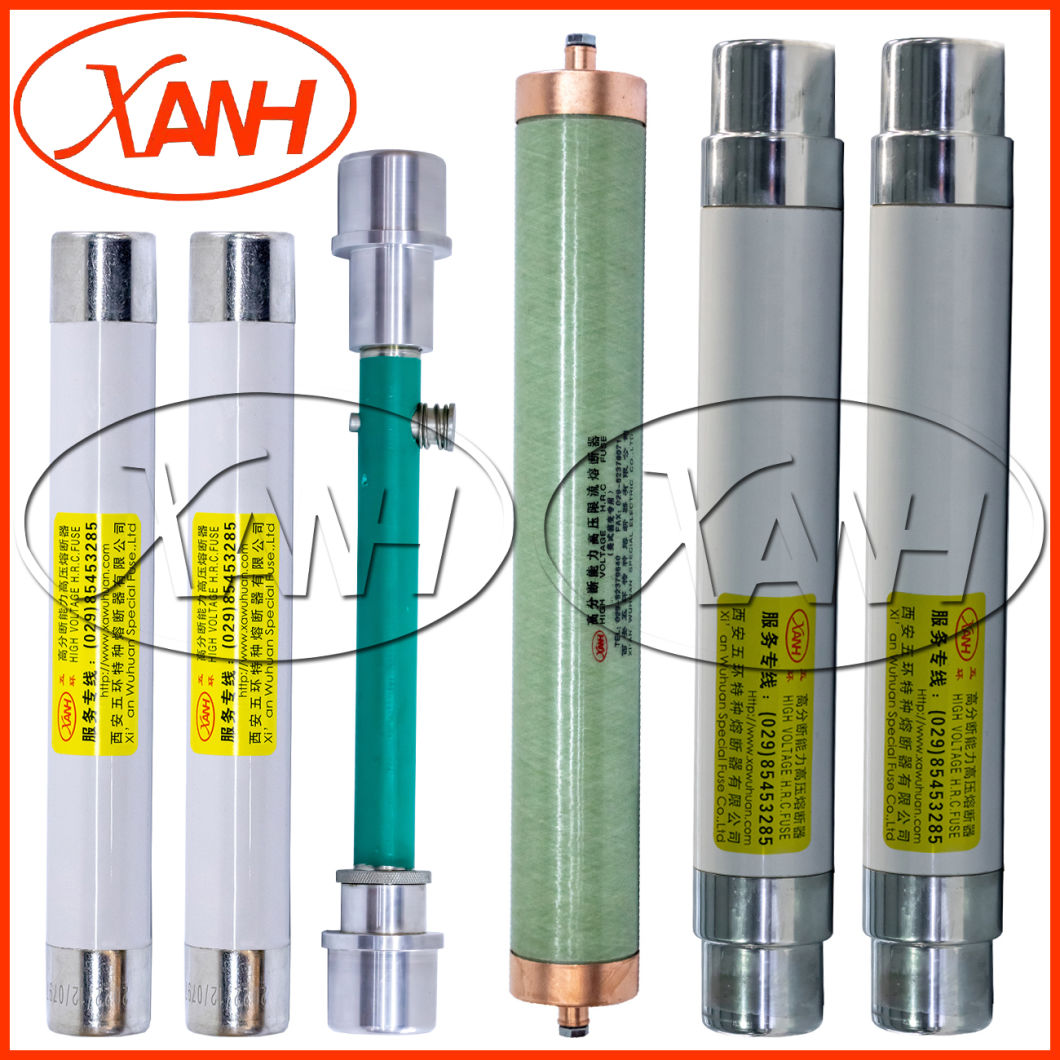

Our products:
1.High voltage fuse for overload protection of oil-immersed transformer
2.High voltage current limiting fuse for backup protection of oil-immersed transformer
3.High voltage current limiting fuse for power transformer protection
4.High voltage current limiting fuses for protection of 40.5kv transformer
5.High voltage current limiting fuse for full range protection of power transformer
6.High voltage current limiting fuse for protection of high voltage motor
7.High voltage current limiting fuse for vacuum contactor fuse (F-C) combination appliance
8.High voltage current limiting fuse for protection of voltage transformer
9.High voltage current limiting fuse for power capacitor protection
10.XRNT-15.5Q Full-range high-voltage current limiting fuse for transformer protection (integral)
11.Full range high voltage current limiting fuse for XRNT-40.5Q transformer protection (integral)
please feel free to contact us if you need any kind of fuse .
1.Are you manufacture?
We are a professional factory with more than 20 years of experience,Our projects supplied to Airprot/Subway/Railway/power station.
2.What is your technical advantages?
Our engineers worked in the power distribution industry field for 20~30 years.In particular, in non-standard customization of electric field, High altitude, non-standard voltage frequency field.
3.What is your price advantages?
we have 5 branch factorier for electric components,all raw materials are one stop shopping,so we can save the value for you!
4.How about your quality advantage?
We are 100% guarantee the quality for 3 years.
5.How about your delivery time?
The delivery time with 1-10 working days after get your deposit. Our factory is located in
Xi'an , Shannxi . In terms of quality and strength, we are both ahead of the market . 6.We can accept payment way:
TT/LC/DP /STS ORDER
